Reservoir control with Metirius Tank: level, valves and chlorine

Metirius Tank is a field panel that monitors level, flow and pressure together at reservoir stations and manages the valve and chlorine dosing. The panel has two level sensor inputs, two flow meter inputs and one pressure sensor input.

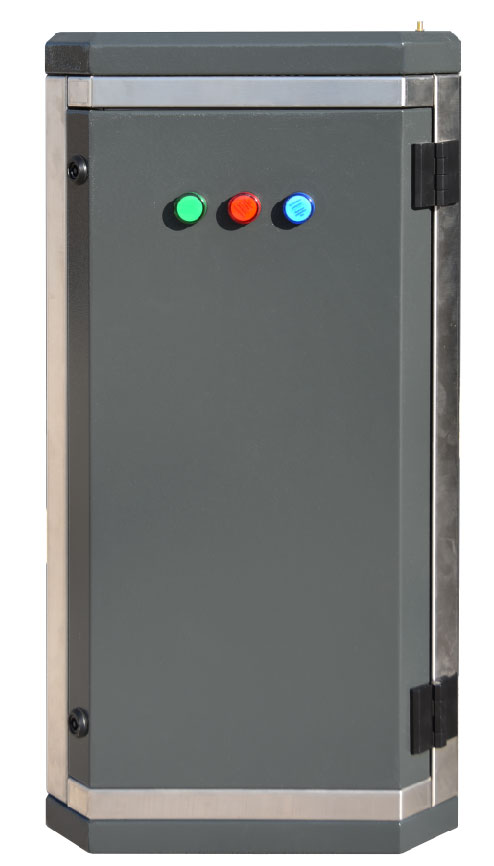

Two Metirius reservoir control panels with coloured status lights

The panel’s role at the reservoir

Metirius Tank panels are used for water monitoring, valve control and chlorine management at reservoir stations. Water movement in the reservoir and the chlorination functions are tied into the same control structure.

For fully automatic control, Metirius devices can communicate with well and pumping station panels: the reservoir level becomes an input to the operation of the pumps that feed it.

  • Leveltwo level sensors monitor the compartment levels and the defined low and high thresholds
  • Flow and pressuretwo flow meters and a pressure input are used to assess water movement in the reservoir
  • Valve and chlorinethe reservoir valve and chlorine dosing are managed from the panel
  • Control and settingsvalve function, sensor calibration and alarm thresholds are set to suit the operation
Cross-section of a water reservoir with a level sensor, motorised valve and outlet main

Components and technical specifications

ItemSpecification
Control unitIoT-enabled PLC, RTU or industrial PC; optional HMI display
Sensor and measurement inputsTwo level sensor inputs, two flow meter inputs, pressure sensor input
Sensor interfaces4–20 mA hydrostatic level sensor and pressure transmitter; RS-485 electromagnetic flow meter
Inputs and outputsDigital and analogue I/O modules
CommunicationThree RS-485 ports; GSM/RF communication device: 2G, 3G, 4G or LoRa
Power200–500 VAC or 24 VDC input; isolation transformer; AC/DC battery charging system
EnclosureSheet-metal or PVC enclosure, depending on the application
SoftwarePredixi WIS integration

Reservoir data at the centre

Reservoir water level and fill percentage, inflow and outflow rates, valve status and chlorine dosing are monitored together in the reservoir station view. Alarms and historical records are collected in Predixi WIS along with the utility’s other stations.

Predixi WIS screen of a reservoir station: level in a two-compartment reservoir, inflow and outflow, valve and chlorine dosing unit
